2HP Sub Surface Horizontal Aspirator

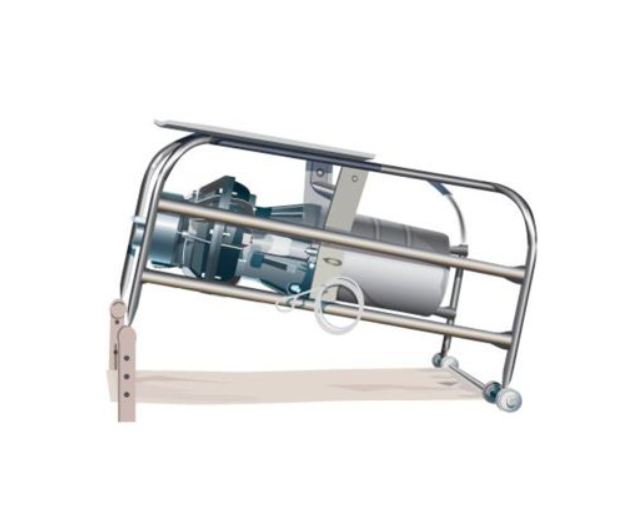

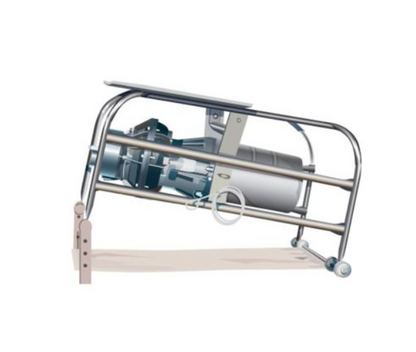

The 2HP Sub Surface Aspirator is designed to inject oxygen into effluent, brackish, and high-nutrient lake water bodies, significantly improving aeration and circulation. This system features a floating venturi air hose that pulls oxygen from the water surface, mixes it in the pump chamber, and distributes it below the surface. Ideal for areas where aeration is required without visible surface spray, it offers an efficient and discreet solution.

Key Features:

• Oxygen Injection: The venturi air hose draws oxygen from the water surface to mix and release into the water column, enhancing water quality.
• Durable Design: Built from 18-gauge 316L stainless steel, the oil-cooled motor is designed for industrial-grade durability and long life.
• Indestructible Impeller: Features a precision-pitched stainless steel impeller that ensures reliable performance even in demanding environments.
• Debris Protection: A 316L stainless steel protective cage prevents large debris from entering the pump chamber.
• Adjustable Flow: Adjustable brackets let you control the angle of water flow, optimizing the current for better aeration and circulation.

Technical Specifications:

• Power: 2HP, Single Phase / 230V motor.
• Max Power Draw: 2760 watts.
• Coverage Area: Influences up to 10,704m³ of water.
• Operating Depth: Minimum of 0.76m (2.5ft).

Complete System Includes:

• 1 x 2HP Sub Surface Motor Assembly (Single Phase, 230V).
• Protective pump cage with arms.
• Sub Surface Aspirator Pump Chamber.
• Venturi Air Line for oxygen mixing.
• 30m (98ft) of 3-core 4mm² submersible power cable.
• Submersible cable joint kit for secure installation.

Construction time: 7-10 working days.

This 2HP aspirator system is perfect for improving oxygen levels and water circulation in high-nutrient environments without disrupting the surface, making it ideal for effluent ponds, brackish water bodies, and lakes suffering from poor water quality
