BioTec ScreenMatic Filter Set 120000
BioTec ScreenMatic Filter Set 120000
Couldn't load pickup availability

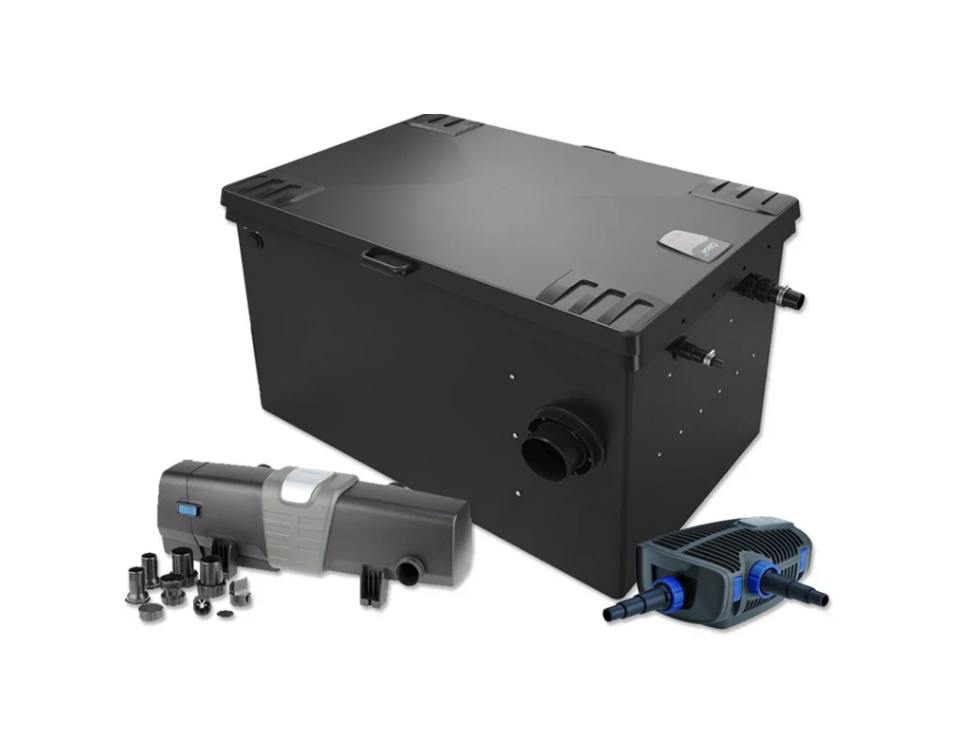

The OASE BioTec ScreenMatic² Set 120000 ECO includes:
- BioTec ScreenMatic 145000² Filter: Mechanical/biological filtration with automatic debris removal.

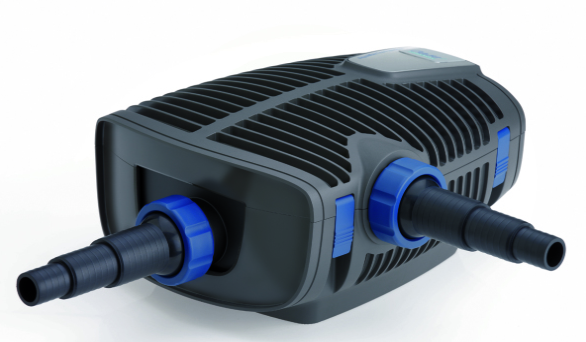

- AquaMax Eco Premium 21000 Pump: Energy-efficient water circulation.

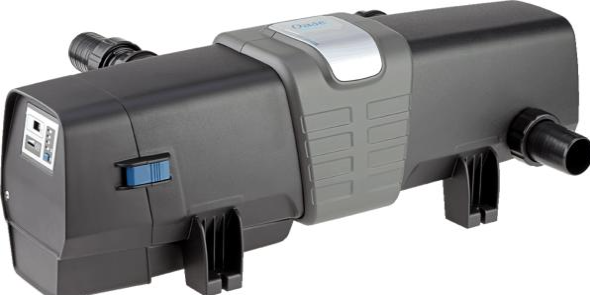

- Bitron ECO 120 UV Clarifier: Algae control and bacteria reduction.
Suitable for:
- Wildlife ponds (no fish): Up to 120,000L.
- Goldfish ponds: Up to 60,000L.
- Koi ponds: Up to 30,000L
Share
OASE BioTec ScreenMatic² Filter Sets
The OASE BioTec ScreenMatic² ECO Sets offer complete filtration solutions designed for ponds of various sizes and fish densities. Each set includes a BioTec ScreenMatic² 145000 filter, an AquaMax Eco Pump, and a Bitron UV clarifier, specifically configured to ensure efficient water turnover and tackle algae, solid particles, and soluble waste. This results in consistently clear, healthy pond water.

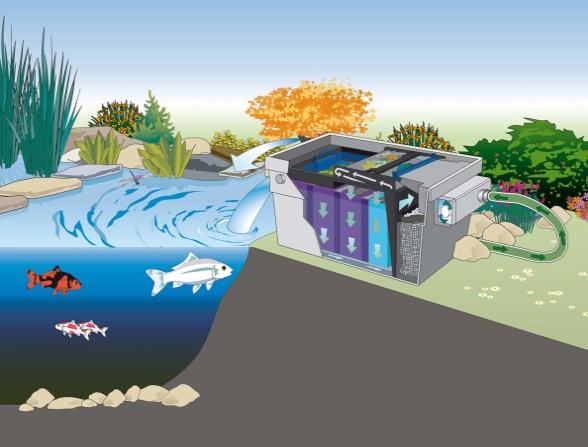

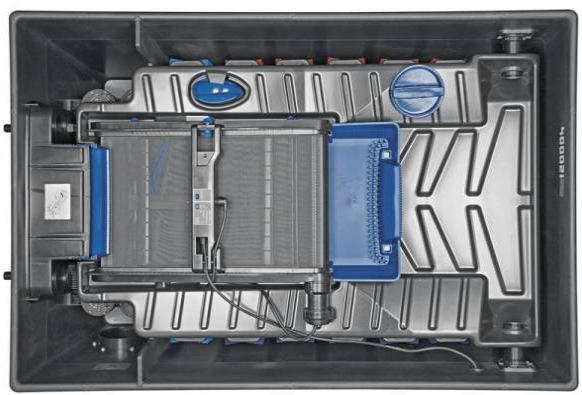

The BioTec ScreenMatic² 145000 is a large filtration system equipped with an automatic waste screen, layered filter foams, and zeolite media for comprehensive filtration. Water flows over a 300-micron screening belt that captures organic waste, and a sensor automatically triggers cleaning cycles when necessary, depositing waste into a collection tray. Below the screen, 18 graded filter sponges provide extensive biological filtration, while 14.5kg of zeolite absorbs excess nutrients and gases.
The AquaMax Eco Premium 21000 pump ensures a high water turnover rate, handling solids up to 11mm in size, while the Bitron 120W UV clarifier features a self-cleaning rotor, bypass mechanism, and visual indicator, effectively treating algae on entry.
Performance Data
The following pond volumes are recommended for filtration setups where the filter outlet is positioned roughly 1 meter above the pond water level, with an approximate 5-meter length of 1½" diameter hose between the pump and outlet. These volumes assume the use of a Bitron ultraviolet clarifier (UVC) to optimize water clarity and filtration efficiency:
- For ponds with fish: Recommended maximum pond volume is lower to ensure sufficient filtration and control of nutrient levels, preventing excessive algae growth and maintaining a healthy environment for the fish.
- For ornamental ponds (without fish): Higher recommended maximum pond volume due to fewer nutrient challenges from fish waste, allowing efficient filtration of larger water bodies.
For specific recommendations based on your setup and fish density, please refer to the technical specifications provided with the BioTec ScreenMatic² filter and Bitron UVC clarifier.
Pond Turnover Rates: The rate at which water should circulate in your pond depends on stocking levels, impacting the pump flow rate needed:
- Ornamental Ponds (no fish): Circulate pond volume every 6-8 hours.
- Average-Stocked Ponds (up to 1 kg fish per 1000 litres): Circulate every 4 hours.
- Heavily Stocked Ponds with Koi (up to 2 kg fish per 1000 litres): Circulate every 2 hours.
The BioTec ScreenMatic Set pumps are designed to account for flow reduction as filter foams accumulate waste (see importance of maintenance below).
Pump Flow Rate: Pump flow rate, measured in litres per hour (lph) or litres per minute (lpm), depends on the vertical lift from pond surface to outlet and on system friction losses. Using larger-diameter hose reduces friction, and losses across filter media increase as they collect debris.
Effect of Raising the Filter: Raising the filter for watercourses or waterfalls reduces flow rate, slowing down circulation and potentially lowering filtration capacity. In such cases, you might need a higher-capacity pump. Contact us for tailored advice.
Importance of Regular Maintenance: High flow rates are essential for effective filtration. As the filter screen and foams trap debris, friction loss increases, reducing flow rate and filter efficiency. Regular cleaning, especially for raised systems, ensures optimal performance. The OASE BioTec ScreenMatic filters make this process straightforward, maintaining high flow and effective filtering.
