Healthy Lake

Proficlear Compact Set 120000

Proficlear Compact Set 120000

£7,299.99 GBP
£7,299.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

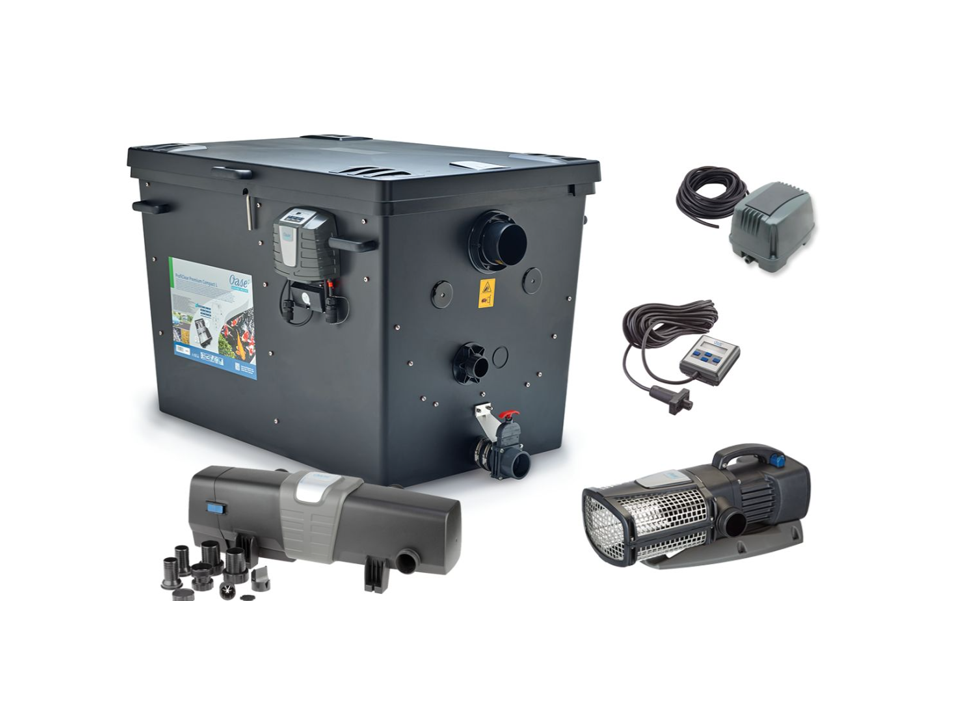

The ProfiClear Premium Compact Set 120000 is a high-performance filtration system that includes the self-cleaning ProfiClear Premium Compact filter, the energy-efficient AquaMax Eco Expert 26000 pump, the advanced Bitron ECO 180W UV clarifier, and the AP4800 aerator for optimal oxygenation. This system is ideal for keeping water clear and maintaining a healthy environment in larger ponds.

Suitable for pond sizes:

  • Ornamental/wildlife ponds: Up to 120,000 litres (no fish stock)
  • Goldfish ponds: Up to 60,000 litres (1kg of fish per 1000 litres)
  • Koi Carp ponds: Up to 30,000 litres (2kg of fish per 1000 litres)

View full details

Technical Information

AquaMax Eco Expert 26000 Pump and ProfiClear Compact Filtration System

AquaMax Eco Expert 26000 Pump:

  • Provides an optimal flow rate for the filtration system.
  • Energy-efficient operation with the ability to pass solids up to 11mm in size into the drum filter.
  • Equipped with ECO Expert Pump Control, allowing precise digital tuning of the flow rate for tailored performance and energy savings.

Bitron ECO 180-Watt UVC:

  • Eliminates algae efficiently, ensuring consistently clear water.
  • Features adjustable power settings for reduced energy use during less demanding periods.
  • Can be directly mounted onto the ProfiClear Compact-L filter body via its two inlet ports for a streamlined system.

ProfiClear Premium Compact-L Filter:

Mechanical Filtration:

  • Utilizes an automatic self-cleaning drum filter to remove solid waste down to 60µm.
  • High-pressure cleaning pump ensures efficient flushing of trapped debris.
  • Intelligent cleaning system adjusts based on water levels or operates on scheduled intervals.

Biological Filtration:

  • Employs Hel-X 13 moving bed media in a secondary stage for optimal breakdown of soluble waste.
  • Enhanced by the AP4800 air pump, which continuously oxygenates and circulates the media for effective bacterial nitrification.

This advanced setup combines robust mechanical and biological filtration with precise digital controls, delivering crystal-clear water, reduced maintenance, and energy efficiency.

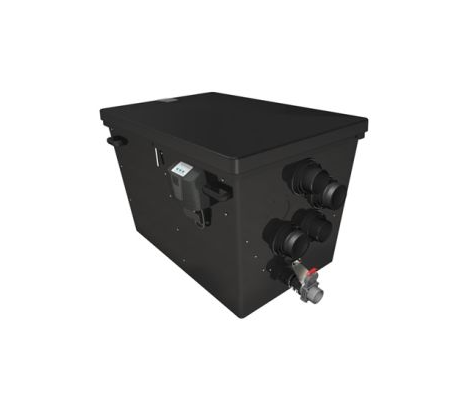

Key features - Proficlear Compact L filter

1. Rotary Drum Filtration

  • High-Performance Drum: Screens out solid waste down to 60 microns through 8 removable fine mesh sieve screens.
  • Smart Operation: Operates on a timer or via an automatic cleaning system activated by a water level sensor detecting waste accumulation.

2. Efficient Cleaning System

  • Powerful Cleaning Pump: High-pressure water jets spray the drum sieves during cleaning cycles to flush waste out through the front waste outlet.
  • Optimized Spray Coverage: Four adjustable nozzles ensure thorough cleaning across the sieve's surface.

3. Hel-X 13 BioMedia

  • Advanced Biomedia: Offers 13% more surface area compared to earlier versions, making it exceptionally effective for bacterial nitrification.
  • Industry-Leading Efficiency: Surpasses the performance of even renowned biomedia like Kaldnes K1.

4. Convenient Drain Valve

  • Watertight Slide Valve: Allows quick water drainage for maintenance or system relocation.
  • Versatile Outlet: Compatible with pipes for directing water to drains, soakaways, or garden beds.

5. Aeration Elements

  • Continuous Oxygenation: A large air stone keeps Hel-X 13 media moving, ensuring optimal biological waste breakdown.
  • Air Supply: The external AP4800 air pump powers the aeration system through a flexible air hose.

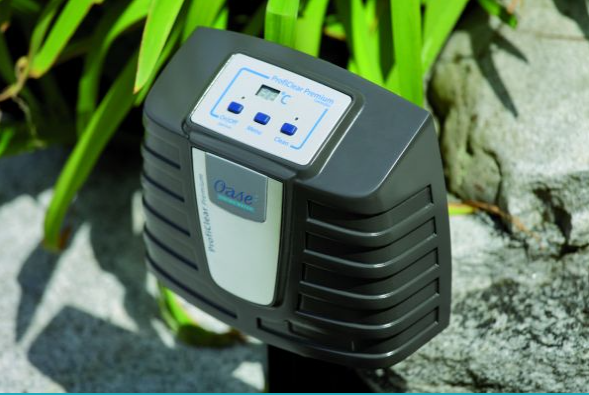

6. Digital Controls

  • Centralized Control Unit: Weatherproof and externally mounted for easy access.
  • Automated and Manual Settings: Enables intelligent cleaning cycles or manual intervals.
  • Additional Features: Displays water temperature and identifies system issues.

7. Flexible Installation Options

  • Direct Integration: Twin ports allow for the direct mounting of a Bitron ECO 180w UV clarifier.
  • Alternative Inlet: A 2" inlet port accommodates inline UVC systems or non-UV installations.

8. Waste Discharge

  • Automated Flushing: Solid waste is automatically expelled during cleaning cycles to prevent breakdown and maintain oxygenated water.
  • Enhanced Efficiency: Supports aerobic bacteria in the biological chamber for superior water quality.

This filtration system provides unparalleled mechanical and biological filtration, ensuring clean, clear, and healthy pond water with minimal maintenance effort.
