ProfiClear Premium Filter Set 400000
ProfiClear Premium Filter Set 400000
Couldn't load pickup availability
The latest generation of OASE Proficlear Drum and Moving Bed Filtration, Bitron UV Clarifiers, AquaMax Eco Expert Pump, and AP Aeration technology delivers exceptional particle removal and high-intensity treatment for suspended algae and pathogens. This advanced combination ensures superior water clarity and health for ponds and lakes. We have expertly matched these components to create the ideal water cleaning system for various pond sizes.
The Proficlear Premium Filter Set 400000 is designed for:
- Ornamental/Wildlife Ponds: Up to 400,000 liters (without fish stock).
- Goldfish Ponds: Up to 200,000 liters (with a fish stock of up to 1 kg per 1,000 liters).
- Koi Carp Ponds: Up to 100,000 liters (with a fish stock of up to 2 kg per 1,000 liters).
Share
Technical info
Proficlear Premium Set 400000: Advanced Pond Filtration System
The Proficlear Premium Set 400000 is a comprehensive, high-performance pond filtration system designed for large ponds and lakes, delivering exceptional water clarity and biological filtration.

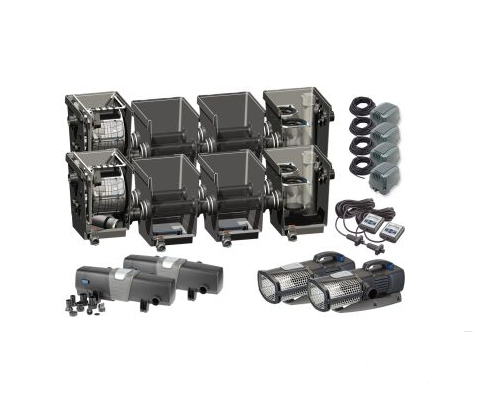

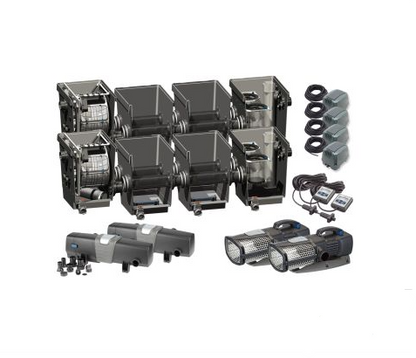

System Components:
1. OASE Aquamax Eco Expert 26000 Filter Pump
- Flow Capacity: Transports debris up to 11mm Ø
- Energy Efficiency: Optimized flow with minimal power consumption
- Installation Options - Submersed in water or Dry-mounted in flooded suction configuration
- Connects to the Bitron ECO 240 UV Clarifier via 2” flexible hose
2. OASE Bitron ECO 240 Ultraviolet Clarifier
- UV Power: 240 watts of concentrated UV radiation
- Functionality - Eliminates suspended algae, harmful bacteria, and germs. Also ensures clear, biologically safe water
3. OASE Proficlear Premium Drum Filter Module Filtration
- Capacity: Removes coarse debris down to 60 microns
- Automatic Cleaning: Integrated high-pressure pump flushes sludge to the waste outlet
- Advanced Monitoring: Intelligent microcontroller for automated adjustments
- Pollutant Rakes: Remove string algae and large particles
4. OASE Proficlear Premium Moving Bed Modules
- Hel-X Biomedia: Each module contains 50 litres of biomedia for microbial colonization
- Biological Filtration: Effective nutrient reduction, toxin removal (ammonium/ammonia, nitrite)
- Aeration Bar: Oxygen enrichment through a built-in aerator bar, connected to the AP4800 Air Pump
5. OASE Proficlear Premium Individual Module
- Water Level Maintenance: Ensures sufficient water level for system efficiency
- Additional UV Capacity: Houses extra UV clarifiers if required
- Customizable Filtration: Compatible with additional media such as Zeolite, Phosless, fish medications, or water treatments
Benefits:
- Ensures crystal-clear, biologically balanced water
- Automatic cleaning for low maintenance
- Superior mechanical and biological filtration for large aquatic systems
The Proficlear Premium Set 400000 provides industry-leading filtration performance, making it ideal for koi ponds, large water features, and aquaculture applications.
ProfiClear Premium Filter System Features
1. Rotary Drum Filtration
- Advanced Mechanical Filtration: Filters solid waste particles as small as 60 microns.
- Removable Mesh Sieves: Equipped with 8 fine mesh sieve screens for easy maintenance.
- Automatic or Timer-Controlled Cleaning: Integrated water level sensor detects blockages and triggers automatic cleaning.
2. Cleaning System
- High-Pressure Cleaning Pump: Sprays powerful water jets over the drum sieves during cleaning cycles.
- Offset Spray Nozzles: Four adjustable nozzles ensure thorough cleaning by covering more surface area.
- Efficient Waste Removal: Flushed waste is directed through the front waste outlet for easy disposal.
3. Hel-X 13 BioMedia
- Superior Nitrification Efficiency: Provides an increased surface area of 13% over earlier designs for optimal bacterial growth.
- Maximized Biological Filtration: Supports effective breakdown of ammonia and nitrite in the moving bed chamber.

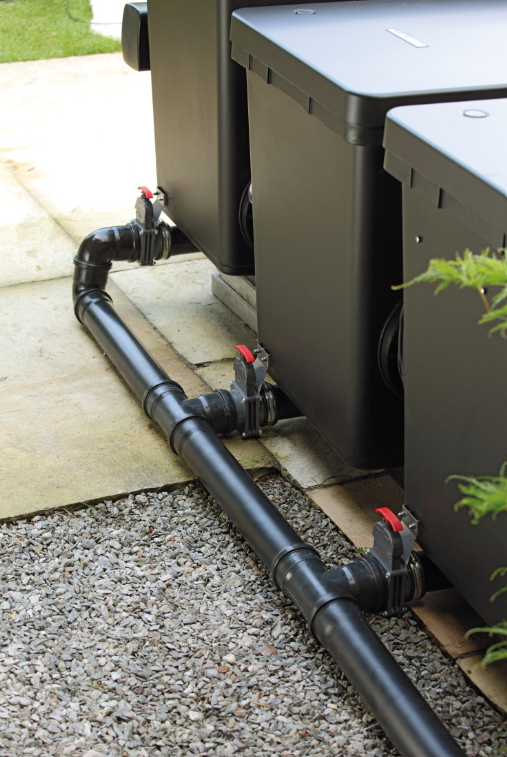

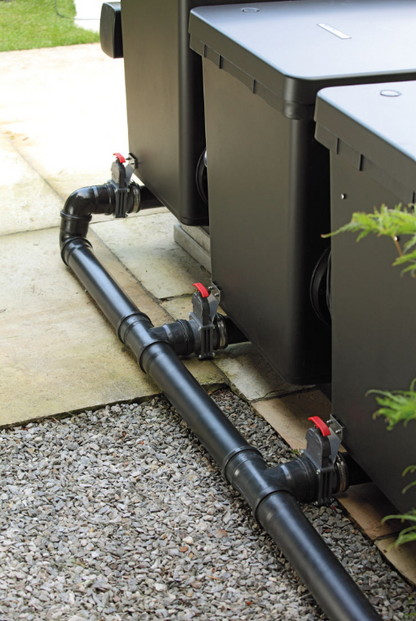

4. Drain Valve
- Watertight Slide Valve: Allows quick drainage of the system for cleaning or maintenance.
- Versatile Connection: Can connect pipes to direct water to drains, soakaways, or garden beds.
5. Aeration Elements
- Built-in Air Outlet: Located at the bottom of the moving bed chamber for even oxygen distribution.
- Mesh Sleeve Containment: Ensures all biomedia remains within the aeration chamber for optimal circulation.
- Aerator Pump Integration: Easily connects to the AP4800 air pump for enhanced oxygenation.
6. Digital Control System
- Weatherproof External Unit: Monitors and controls the drum motor and cleaning pump.
- Automated Cleaning Settings: Supports intelligent or timed cleaning intervals.
- Water Temperature Display: Provides real-time temperature monitoring and diagnostic alerts.

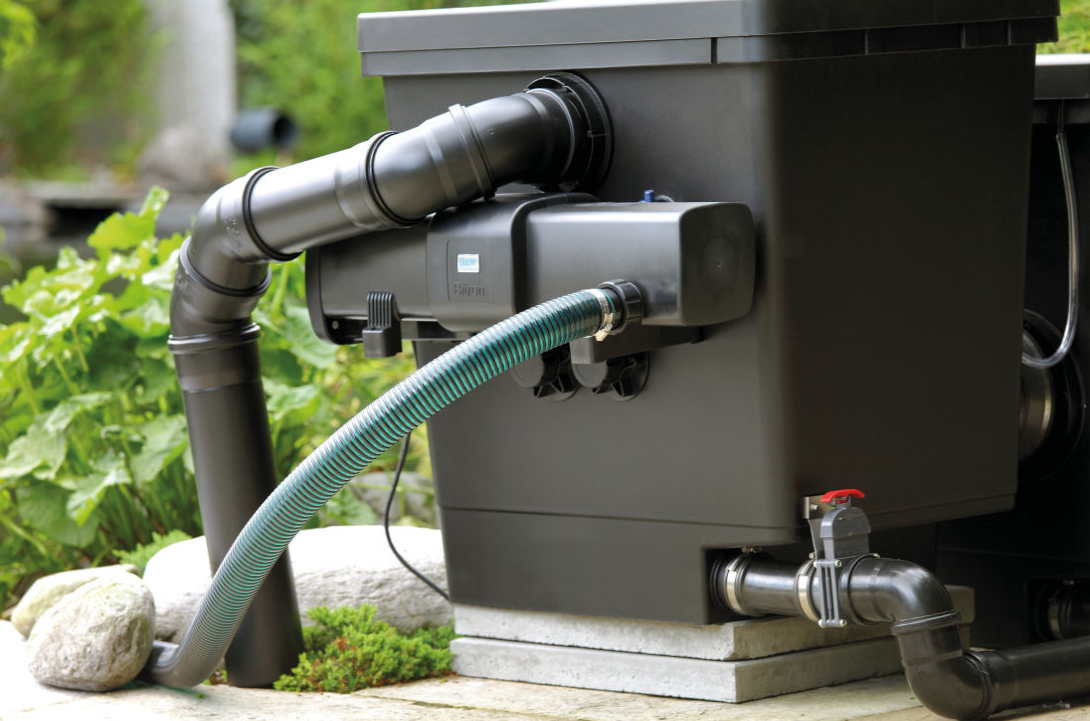

7. Flexible Installation Options
- Multiple Inlet Ports: Features twin ports for direct mounting of Bitron ECO 240W UV clarifiers.
- Additional Inlet Port: 2-inch port for hose connection or inline UV integration.
- Compact Design: Ideal for various pond and aquatic system configurations.
8. Waste Discharge System
- Automatic Waste Removal: Solid waste is flushed out during each cleaning cycle, preventing decomposition.
- Continuous Waste Management: Ensures an oxygen-rich environment for aerobic bacteria to thrive, maintaining efficient biological filtration.
The ProfiClear Premium Filter System offers a cutting-edge solution for large pond filtration, combining advanced mechanical and biological processes with intelligent controls. Its innovative features ensure crystal-clear water, low maintenance, and reliable waste management, making it ideal for professional pond and aquatic applications.
