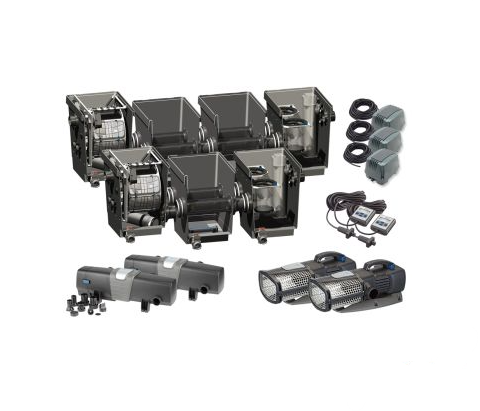

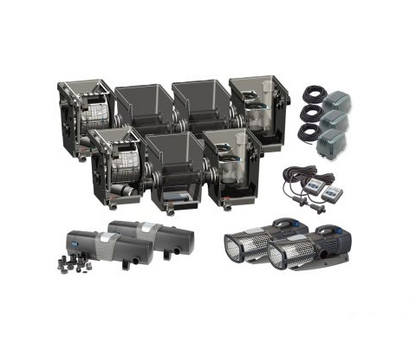

ProfiClear Premium Set 300000
ProfiClear Premium Set 300000
Couldn't load pickup availability
The latest generation of OASE Proficlear Drum and Moving Bed Filtration, Bitron UV Clarifiers, AquaMax Eco Expert Pump, and AP Aeration technology has been expertly combined from Healthy Lake to deliver superior particle removal and high-intensity treatment for suspended algae and pathogens. This results in exceptional water clarity and health for your ponds or lakes.
The Proficlear Premium Filter Set 300000 is designed for:
- Ornamental/Wildlife Ponds: Up to 300,000 liters (without fish stock).
- Goldfish Ponds: Up to 150,000 liters (with a fish stock of up to 1 kg per 1,000 liters).
- Koi Carp Ponds: Up to 75,000 liters (with a fish stock of up to 2 kg per 1,000 liters).
Share
Technical info - ProfiClear Premium Set 300000
The OASE Aquamax Eco Expert 26000 Filter Pump is a high-performance, energy-efficient solution for transporting coarse debris up to 11mm in diameter. Designed for flexibility, it can be submerged or dry-mounted in a flooded suction setup, depending on the requirements of the installation. The pump typically connects to the OASE Bitron ECO 180 UV Clarifier using a 2-inch flexible hose for seamless water transfer.
The OASE Bitron ECO 180 UV Clarifier delivers 180 watts of concentrated ultraviolet radiation. This UV treatment effectively eliminates suspended algae, harmful bacteria, and germs, ensuring improved water clarity and quality. Once the water has been sterilized, it is passed on to the ProfiClear Premium Drum Filter Module for further processing.
The OASE ProfiClear Premium Drum Filter Module serves as the core of the system, providing advanced mechanical filtration. Its deep-bed filtration system removes debris as fine as 60 microns, guaranteeing crystal-clear water. The module is equipped with pollutant rakes to remove string algae and larger debris from the rotating drum. A high-pressure cleaning pump automatically flushes accumulated sludge through the waste outlet, ensuring the drum remains efficient. This process is monitored and controlled by an intelligent microcontroller that adjusts the cleaning cycles based on water conditions.
Following mechanical filtration, the water moves to the ProfiClear Premium Moving Bed Modules. Each module comes with 50 liters of Hel-X biomedia, which supports the growth of beneficial microorganisms. These microorganisms are crucial for reducing harmful nutrients, such as ammonia, ammonium, and nitrite, ensuring a healthy aquatic environment. The built-in aerator bar enhances oxygen levels and promotes water circulation when connected to the AP4800 Air Pump, further supporting biological filtration processes.
The final component of the system is the OASE ProfiClear Premium Individual Module. This module maintains the water level within the filtration system and can house additional UV clarifiers if necessary. It is also highly adaptable, allowing for the addition of specialized filter media like Zeolite for ammonia reduction or Phosless for phosphate binding. Additionally, this module can accommodate fish medications and other water treatments, making it a versatile solution for tailored pond management.
The OASE filtration system is ideal for large ponds and aquatic environments, combining mechanical, biological, and UV filtration to deliver exceptional water quality. Its modular design offers flexibility, while automated cleaning features and digital controls minimize maintenance requirements. This system is a reliable choice for ensuring a healthy, clear, and balanced aquatic ecosystem.
Key Features
1. Rotary Drum Filtration
- Advanced Mechanical Filtration: Filters solid waste particles as small as 60 microns.
- Removable Mesh Sieves: Equipped with 8 fine mesh sieve screens for easy maintenance.
- Automatic or Timer-Controlled Cleaning: Integrated water level sensor detects blockages and triggers automatic cleaning.
2. Cleaning System
- High-Pressure Cleaning Pump: Sprays powerful water jets over the drum sieves during cleaning cycles.
- Offset Spray Nozzles: Four adjustable nozzles ensure thorough cleaning by covering more surface area.
- Efficient Waste Removal: Flushed waste is directed through the front waste outlet for easy disposal.
3. Hel-X 13 BioMedia
- Superior Nitrification Efficiency: Provides an increased surface area of 13% over earlier designs for optimal bacterial growth.
- Maximized Biological Filtration: Supports effective breakdown of ammonia and nitrite in the moving bed chamber.
4. Drain Valve
- Watertight Slide Valve: Allows quick drainage of the system for cleaning or maintenance.
- Versatile Connection: Can connect pipes to direct water to drains, soakaways, or garden beds.
5. Aeration Elements
- Built-in Air Outlet: Located at the bottom of the moving bed chamber for even oxygen distribution.
- Mesh Sleeve Containment: Ensures all biomedia remains within the aeration chamber for optimal circulation.
- Aerator Pump Integration: Easily connects to the AP4800 air pump for enhanced oxygenation.
6. Digital Control System
- Weatherproof External Unit: Monitors and controls the drum motor and cleaning pump.
- Automated Cleaning Settings: Supports intelligent or timed cleaning intervals.
- Water Temperature Display: Provides real-time temperature monitoring and diagnostic alerts.
7. Flexible Installation Options
- Multiple Inlet Ports: Features twin ports for direct mounting of Bitron ECO 240W UV clarifiers.
- Additional Inlet Port: 2-inch port for hose connection or inline UV integration.
- Compact Design: Ideal for various pond and aquatic system configurations.
8. Waste Discharge System
- Automatic Waste Removal: Solid waste is flushed out during each cleaning cycle, preventing decomposition.
- Continuous Waste Management: Ensures an oxygen-rich environment for aerobic bacteria to thrive, maintaining efficient biological filtration.
The ProfiClear Premium Filter System offers a cutting-edge solution for large pond filtration, combining advanced mechanical and biological processes with intelligent controls. Its innovative features ensure crystal-clear water, low maintenance, and reliable waste management, making it ideal for professional pond and aquatic applications.
