ProfiClear Premium XL Set 1200000
ProfiClear Premium XL Set 1200000
Couldn't load pickup availability
The OASE ProfiClear Premium XL Filter System is a state-of-the-art drum filtration system designed to deliver unmatched water quality and ease of use for large ponds. Equipped with a high-capacity drum, Moving Bed bio-chamber, innovative "Clear Wave" discharge module, Bitron Premium UVC clarifiers, AquaMax Eco Expert pumps, and AP Aeration, this system efficiently removes particulates and breaks down biological waste, providing "gin-clear" water with automated self-cleaning functionality.
The ProfiClear Premium XL Filter Set 1200000 is ideal for:
- Ornamental/wildlife ponds up to 1,200,000 liters (no fish stock)
- Goldfish ponds up to 600,000 liters (1 kg fish per 1,000 liters)
- Koi Carp ponds up to 225,000 liters (2 kg fish per 1,000 liters)
Share
Technical Info - OASE ProfiClear Premium XL Set 1200000

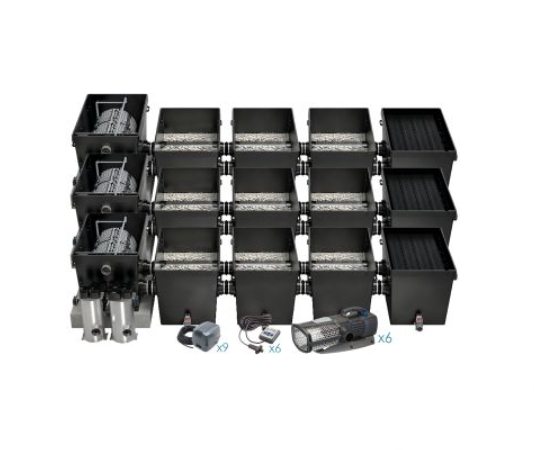

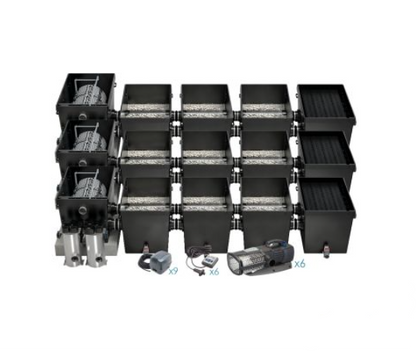

The Proficlear Premium XL Set 1200000 is a comprehensive package that incorporates the latest advancements in Oase pond technology. Central to its functionality is the ultra-energy-efficient Aquamax Eco Expert 26000, which delivers an impressive flow into the filtration system, capable of handling solids up to 11mm in size. With a maximum head of 8.5 meters, the pump can tackle even the most demanding scenarios, ensuring consistent and long-term reliability. Paired with the ECO Expert Pump Control, the motor speed can be digitally adjusted for optimal flow, enabling significant energy savings. The control unit also provides diagnostic information, simplifying fault identification without the need to remove the pump for visual inspection.
The Bitron Premium 180W ultraviolet clarifier enhances water quality by delivering concentrated UV radiation to the water flow, effectively destroying pathogens and single-celled algae. Its reflective reactor chamber maximizes efficiency by prolonging light exposure, ensuring a thorough purification process.

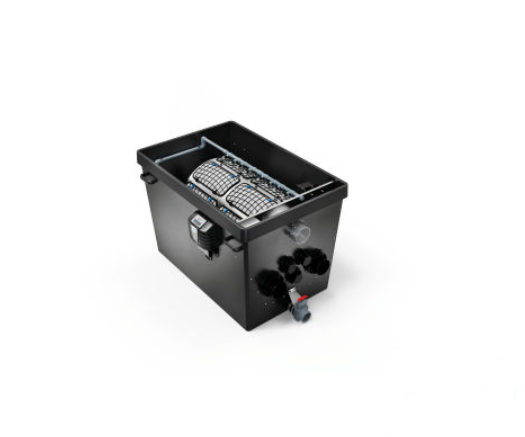

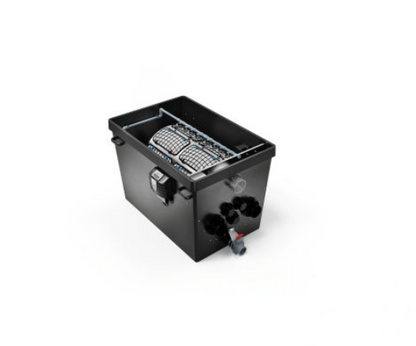

At the heart of the system is the Proficlear Premium XL Drum Module, which features an extended rotating drum mechanism capable of handling flow rates up to 50,000 liters per hour. This module removes particles as small as 60 microns, resulting in crystal-clear water quality. For specific needs, the drum sieves can be replaced with coarser (150 microns) or finer (30 microns) options. Automatic cleaning is initiated by water level sensors within the chamber, rotating the drum while high-pressure spray bars flush away debris.
The XL Moving Bed Module is equipped with 60 liters of Oase PondPads, an innovative biological media with unmatched efficiency. Each 60-liter batch of PondPads can process up to 900 grams of fish waste within 24 hours. This module can be expanded with an additional 90 liters of PondPads, raising the waste processing capacity to 2.25 kilograms daily. The integrated AP6000 air pump powers air stones at the module's base, ensuring consistent circulation and oxygenation to support beneficial bacteria that break down harmful compounds like ammonium, ammonia, and nitrite.
Completing the system is the XL Discharge Module, which incorporates the unique Clear Wave segment for the anaerobic breakdown of nitrates and biofilms. With five DN110 outlets, this module distributes clean water back into the pond via gravity, optimizing coverage. Unused outlets can be capped as needed, making it adaptable to various setups.
This advanced filtration system delivers superior water clarity, biological efficiency, and operational flexibility, making it an ideal choice for maintaining large ponds or aquatic environments.
Key Features

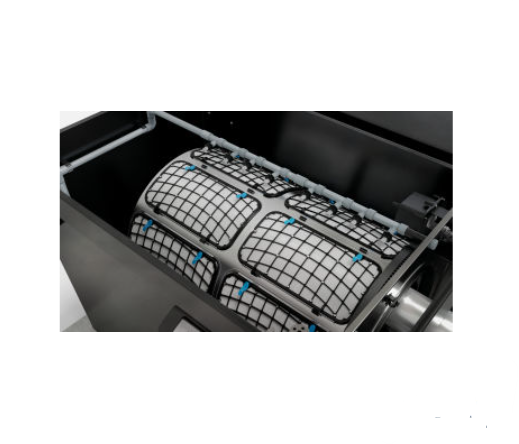

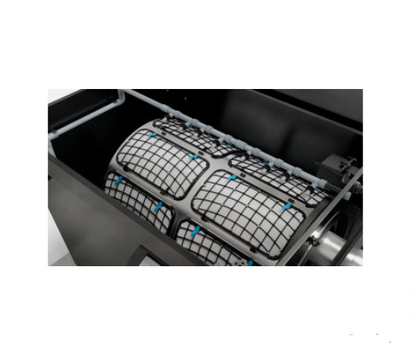

1. Rotary Drum Filtration
- Advanced Mechanical Filtration: Filters solid waste particles as small as 60 microns.
- Removable Mesh Sieves: Equipped with 8 fine mesh sieve screens for easy maintenance.
- Automatic or Timer-Controlled Cleaning: Integrated water level sensor detects blockages and triggers automatic cleaning.
2. Cleaning System
- High-Pressure Cleaning Pump: Sprays powerful water jets over the drum sieves during cleaning cycles.
- Offset Spray Nozzles: Four adjustable nozzles ensure thorough cleaning by covering more surface area.
- Efficient Waste Removal: Flushed waste is directed through the front waste outlet for easy disposal.
3. PondPads BioMedia
- PondPads represent the latest innovation in biological filtration media, offering an unparalleled surface area that surpasses even the renowned Hel-X 13. These advanced pads boast the capability to break down fish waste at an impressive rate of 150 grams of feed per 10 liters of PondPads within a 24-hour period. Constructed from a soft material, PondPads minimize bacterial loss caused by collisions between media within the moving bed, ensuring maximum efficiency in biological nutrient reduction.
4. Drain Valve
- Watertight Slide Valve: Allows quick drainage of the system for cleaning or maintenance.
- Versatile Connection: Can connect pipes to direct water to drains, soakaways, or garden beds.
5. Aeration Elements
- Built-in Air Outlet: Located at the bottom of the moving bed chamber for even oxygen distribution.
- Mesh Sleeve Containment: Ensures all biomedia remains within the aeration chamber for optimal circulation.
- Aerator Pump Integration: Easily connects to the AP4800 air pump for enhanced oxygenation.
6. Digital Control System
- Weatherproof External Unit: Monitors and controls the drum motor and cleaning pump.
- Automated Cleaning Settings: Supports intelligent or timed cleaning intervals.
- Water Temperature Display: Provides real-time temperature monitoring and diagnostic alerts.
7. Waste Discharge System
- Automatic Waste Removal: Solid waste is flushed out during each cleaning cycle, preventing decomposition.
- Continuous Waste Management: Ensures an oxygen-rich environment for aerobic bacteria to thrive, maintaining efficient biological filtration.
The ProfiClear Premium Filter System offers a cutting-edge solution for large pond filtration, combining advanced mechanical and biological processes with intelligent controls. Its innovative features ensure crystal-clear water, low maintenance, and reliable waste management, making it ideal for professional pond and aquatic applications.
