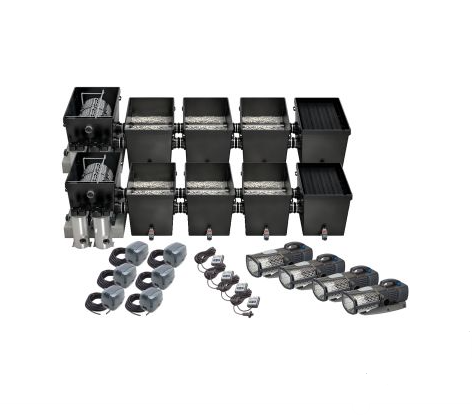

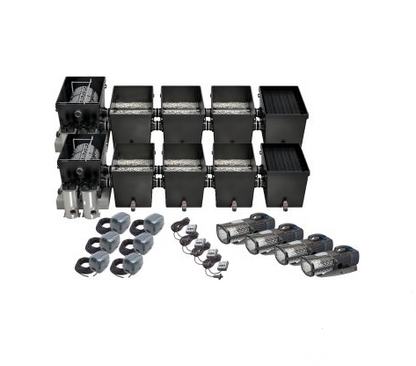

ProfiClear Premium XL Set 800000
ProfiClear Premium XL Set 800000
Couldn't load pickup availability
The ProfiClear Premium XL filter system represents the latest generation of OASE's drum filtration technology. This advanced system features a double-capacity drum, Moving Bed, unique "Clear Wave" discharge module, Bitron Premium UVCs, AquaMax Eco Expert pumps, and AP Aeration, all working together to deliver superior water quality and hassle-free operation. By effectively extracting particulates and breaking down biological waste, the Proficlear systems ensure "gin-clear" water with automated self-cleaning functionality.
The Proficlear Premium XL Filter Set 800000 is designed for:
- Ornamental/Wildlife Ponds: Up to 800,000 liters (without fish stock).
- Goldfish Ponds: Up to 400,000 liters (with a fish stock of up to 1 kg per 1,000 liters).
- Koi Carp Ponds: Up to 150,000 liters (with a fish stock of up to 2 kg per 1,000 liters).
Share
Technical Info - Oase ProfiClear XL Set 800000
The ProfiClear Premium XL Set 800000 is a comprehensive package that represents the pinnacle of Oase's cutting-edge pond filtration technology. At the heart of the system is the ultra-energy-efficient Aquamax Eco Expert 26000 pump. Designed for reliable, long-term performance, this pump handles solids up to 11mm and delivers water to the filter system with ease. Its impressive maximum head of 8.5 meters ensures it can tackle even the most challenging installations. When paired with the ECO Expert Pump Control, users gain digital control over motor speed, optimizing flow and reducing power consumption. The control unit also provides diagnostic information, simplifying fault identification without requiring pump removal or inspection.
The Bitron Premium 180-watt UV clarifier is an essential component of the set, utilizing ultraviolet radiation to destroy harmful pathogens and single-celled algae in the incoming water. Its reflective reactor chamber maximizes efficiency by prolonging exposure time, ensuring optimal water purification.

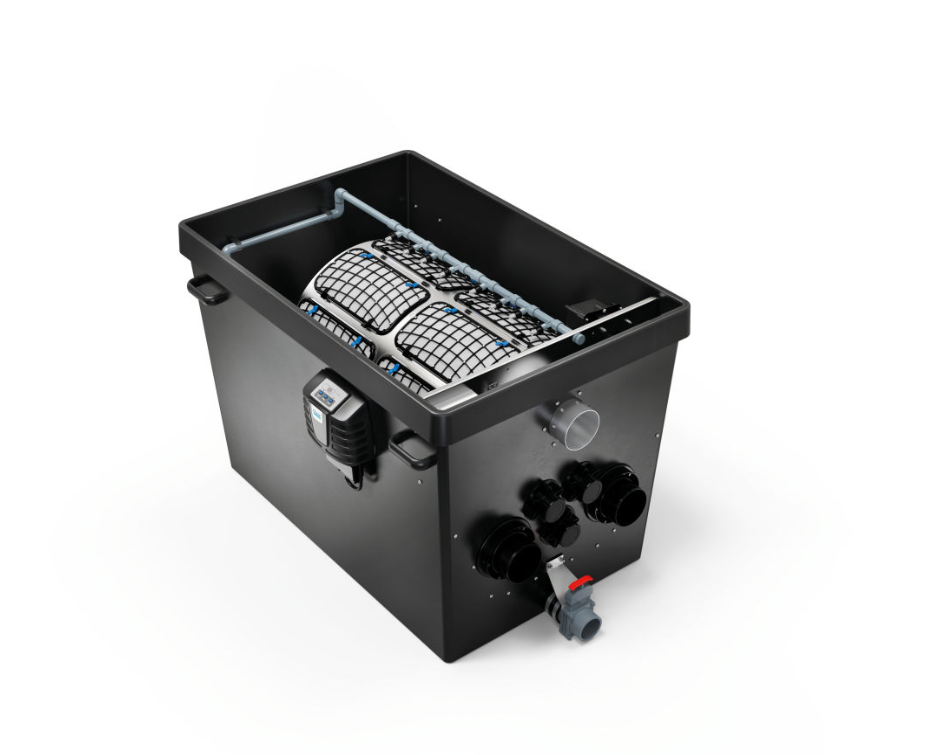

The ProfiClear Premium XL Drum Module features a state-of-the-art rotating drum mechanism that is twice as large as earlier models, accommodating flow rates up to 50,000 liters per hour. Its advanced filtration system captures particles as small as 60 microns, delivering crystal-clear water. For customized filtration, the drum sieves can be swapped for coarser (150 micron) or finer (30 micron) options. The module’s automatic cleaning system, triggered by changes in water levels, rotates the drum and uses a high-pressure pump and spray bar to maintain peak performance.
Biological filtration is handled by the XL Moving Bed Module, which comes with 60 liters of Oase PondPads. These innovative filtration pads can process fish waste at a feeding rate of up to 900 grams per day once matured. The module supports the addition of up to 90 liters of extra PondPads, increasing the breakdown capacity to 2.25 kilograms daily. The AP6000 air pump aerates the module with air stones at its base, creating circulation and supplying oxygen to beneficial bacteria that break down harmful ammonium, ammonia, and nitrite.
The XL Discharge Module rounds out the system with its specialized "Clear Wave" segment, designed to facilitate anaerobic breakdown of nitrates and biofilms. It features five DN110 outlets for returning clean, filtered water to the pond via gravity at multiple points, improving distribution. Unused outlets can be easily capped off for flexibility in setup.
The ProfiClear Premium XL Set 800000 is the ultimate solution for maintaining pristine water quality in large ponds, combining mechanical, UV, and biological filtration with advanced design and energy-efficient operation.
Talk about your brand
1. Rotary Drum Filtration
- Advanced Mechanical Filtration: Filters solid waste particles as small as 60 microns.
- Removable Mesh Sieves: Equipped with 8 fine mesh sieve screens for easy maintenance.
- Automatic or Timer-Controlled Cleaning: Integrated water level sensor detects blockages and triggers automatic cleaning.
2. Cleaning System
- High-Pressure Cleaning Pump: Sprays powerful water jets over the drum sieves during cleaning cycles.
- Offset Spray Nozzles: Four adjustable nozzles ensure thorough cleaning by covering more surface area.
- Efficient Waste Removal: Flushed waste is directed through the front waste outlet for easy disposal.
3. PondPads BioMedia
- PondPads represent the latest innovation in biological filtration media, offering an unparalleled surface area that surpasses even the renowned Hel-X 13. These advanced pads boast the capability to break down fish waste at an impressive rate of 150 grams of feed per 10 liters of PondPads within a 24-hour period. Constructed from a soft material, PondPads minimize bacterial loss caused by collisions between media within the moving bed, ensuring maximum efficiency in biological nutrient reduction.
4. Drain Valve
- Watertight Slide Valve: Allows quick drainage of the system for cleaning or maintenance.
- Versatile Connection: Can connect pipes to direct water to drains, soakaways, or garden beds.
5. Aeration Elements
- Built-in Air Outlet: Located at the bottom of the moving bed chamber for even oxygen distribution.
- Mesh Sleeve Containment: Ensures all biomedia remains within the aeration chamber for optimal circulation.
- Aerator Pump Integration: Easily connects to the AP4800 air pump for enhanced oxygenation.
6. Digital Control System
- Weatherproof External Unit: Monitors and controls the drum motor and cleaning pump.
- Automated Cleaning Settings: Supports intelligent or timed cleaning intervals.
- Water Temperature Display: Provides real-time temperature monitoring and diagnostic alerts.
7. Waste Discharge System
- Automatic Waste Removal: Solid waste is flushed out during each cleaning cycle, preventing decomposition.
- Continuous Waste Management: Ensures an oxygen-rich environment for aerobic bacteria to thrive, maintaining efficient biological filtration.
The ProfiClear Premium Filter System offers a cutting-edge solution for large pond filtration, combining advanced mechanical and biological processes with intelligent controls. Its innovative features ensure crystal-clear water, low maintenance, and reliable waste management, making it ideal for professional pond and aquatic applications.
